PC95PQ65/54-Z

PC95PQ65/54-Z

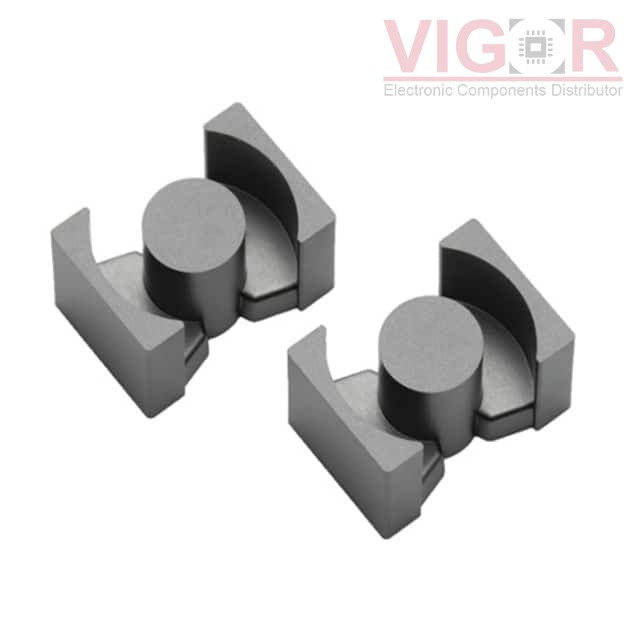

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQ65/54-Z

Manufacturer
TDK Corporation
Description
FERRITE CORE PQ 13.5UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PC95PQ65/54-Z PDF
Availability
90 pieces
Unit Price
$52.09000

Current price of PC95PQ65/54-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQ65/54-Z Specifications
Type Description
Series:Large PQ
Package:Tray
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 65 x 54
Material:PC95
Diameter:-
Inductance Factor (Al):13.5 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.21
Effective Length (le) mm:123
Effective Area (Ae) mm²:597
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:73552
Finish:Uncoated
Height:53.50mm
Length:65.00mm
Width:45.00mm
