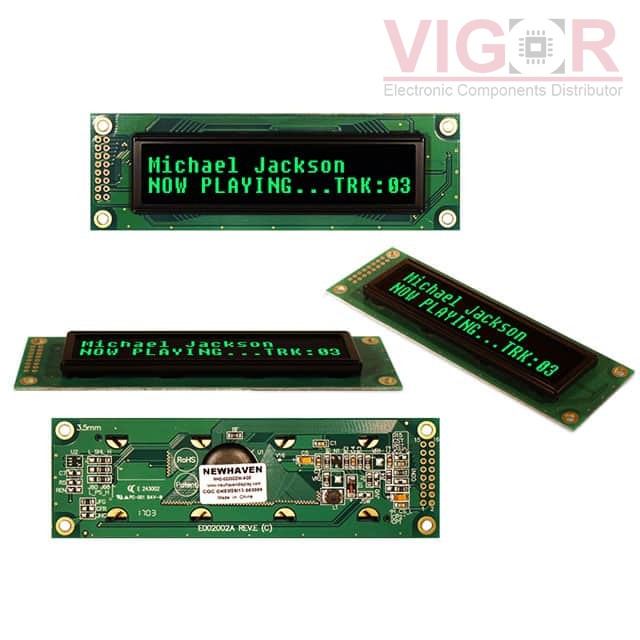

NHD-0220DZW-AG5

NHD-0220DZW-AG5

Image is for reference,
please contact us to get the real picture

Part No :

NHD-0220DZW-AG5

Manufacturer
Newhaven Display, Intl.
Description
LCD MODULE 40 DIG 20 X 2 PASSIVE
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
NHD-0220DZW-AG5 PDF
Availability
291 pieces
Unit Price
$30.53000

Current price of NHD-0220DZW-AG5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NHD-0220DZW-AG5 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Number of Characters:40
Display Format:20 x 2
Character Format:5 x 8 Dots
Display Type:OLED
Display Mode:Passive
Character Size:5.55mm H x 3.20mm W
Outline L x W x H:116.00mm x 37.00mm x 9.80mm
Viewing Area:85.00mm L x 18.60mm W
Backlight:Without Backlight
Voltage - Supply:3V ~ 5.3V
Dot Size:0.60mm W x 0.65mm H
Interface:Parallel/Serial
Controller Type:-
Operating Temperature:-40°C ~ 80°C
Text Color:Green
Background Color:Black
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NHD-0216K1Z-NS(RGB)-FBW-REV1

NHD-0216K1Z-NS(RGB)-FBW-REV1

LCD MOD 32DIG 16X2 TRANSMS R/G/B

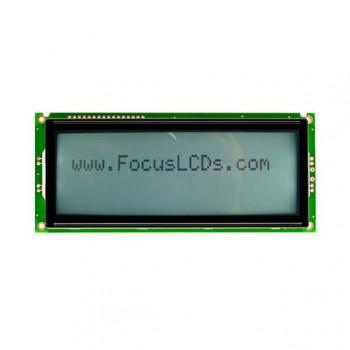

HOT C204B-FTW-LW65
