SDSC20R2W

SDSC20R2W

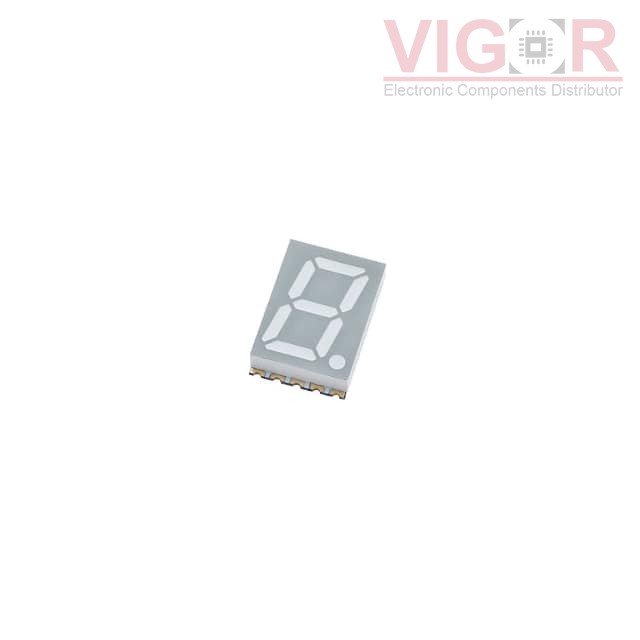

Image is for reference,
please contact us to get the real picture

Part No :

SDSC20R2W

Manufacturer
ChromeLED
Description
DISPLAY 7SEG 0.20" SGL RED 10SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SDSC20R2W PDF
Availability
20 pieces
Unit Price
$1.80000

Current price of SDSC20R2W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDSC20R2W Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Display Format:-
Number of Characters:1
Size / Dimension:0.315" H x 0.283" W x 0.118" D (8.00mm x 7.20mm x 3.00mm)
Digit/Alpha Size:0.20" (5.08mm)
Display Type:7-Segment
Common Pin:Common Cathode
Color:Red
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:12mcd
Wavelength - Peak:625nm
Power Dissipation (Max):70mW
Package / Case:10-SMD, No Lead
