H20307RR05Q

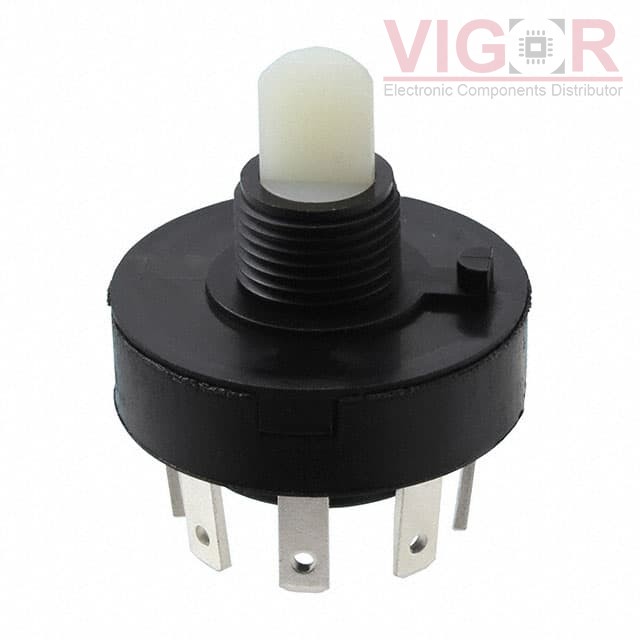

Image is for reference,
please contact us to get the real picture

Part No :: H20307RR05Q

Manufacturer: C&K

Description: SWITCH ROTARY 3POS 12A 125V

Catalog: Rotary Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: H20307RR05Q PDF

Availability: 0 pieces

Unit Price: ~~$6.16000~~

Current price of H20307RR05Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H20307RR05Q Specifications

Type	Description
Series:	H
Package:	Bulk
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	2
Circuit per Deck:	DP3T
Contact Timing:	Not Specified
Current Rating (Amps):	12A (AC), 1A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	7.29mm
Angle of Throw:	45°
Contact Material:	Copper
Contact Finish:	Silver
Mounting Type:	Panel Mount
Termination Style:	Quick Connect - 0.110" (2.8mm)
Features:	-
Depth Behind Panel:	15.25mm

Please confirm the specifications of the products when ordering.
