JL15SKSBFP2

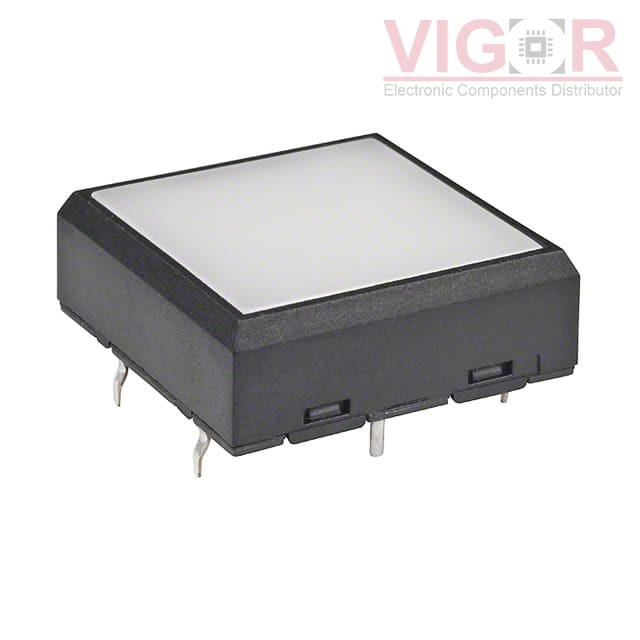

Image is for reference,
please contact us to get the real picture

Part No :: JL15SKSBFP2

Manufacturer: NKK Switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: JL15SKSBFP2 PDF

Availability: 18 pieces

Unit Price: ~~$26.88000~~

Current price of JL15SKSBFP2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JL15SKSBFP2 Specifications

Type	Description
Series:	JL
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	7.85mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	22.00mm x 22.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Green
Illumination Voltage (Nominal):	4.2 VDC
Operating Force:	300gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-25°C ~ 50°C

Please confirm the specifications of the products when ordering.
