PE-63587NL

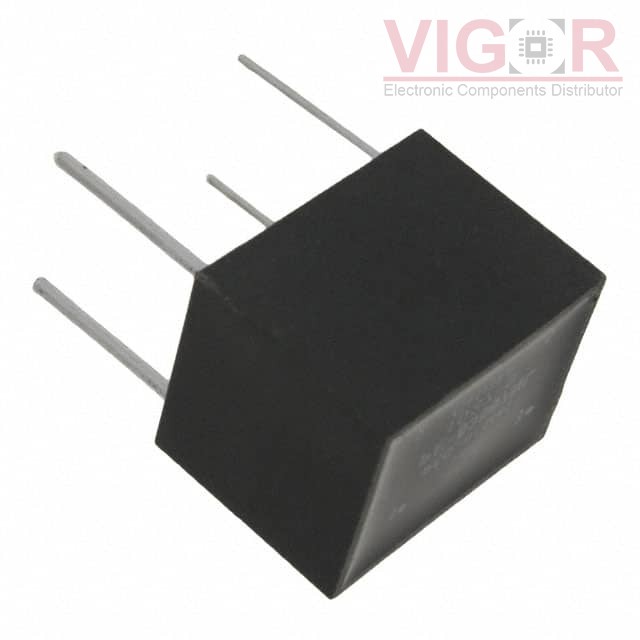

Image is for reference,
please contact us to get the real picture

Part No :: PE-63587NL

Manufacturer: PulseLarsen Antenna

Description: CURR SENSE XFMR 20A T/H

Catalog: Current Sense Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: PE-63587NL PDF

Availability: 2689 pieces

Unit Price: ~~$5.25000~~

Current price of PE-63587NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PE-63587NL Specifications

Type	Description
Series:	THT
Package:	Tray
Part Status:	Active
Frequency Range:	20kHz ~ 200kHz
Type:	Invasive
Current Rating (Amps):	20 A
Inductance:	20 mH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	-
Current Ratio:	100:1
DC Resistance (DCR):	100Ohm Primary, 1.4Ohm Secondary
Ratings:	-
Mounting Type:	Through Hole
Size / Dimension:	0.900" L x 0.700" W (22.86mm x 17.78mm)
Height - Seated (Max):	0.700" (17.78mm)
Termination Style:	PC Pin
