750316878

750316878

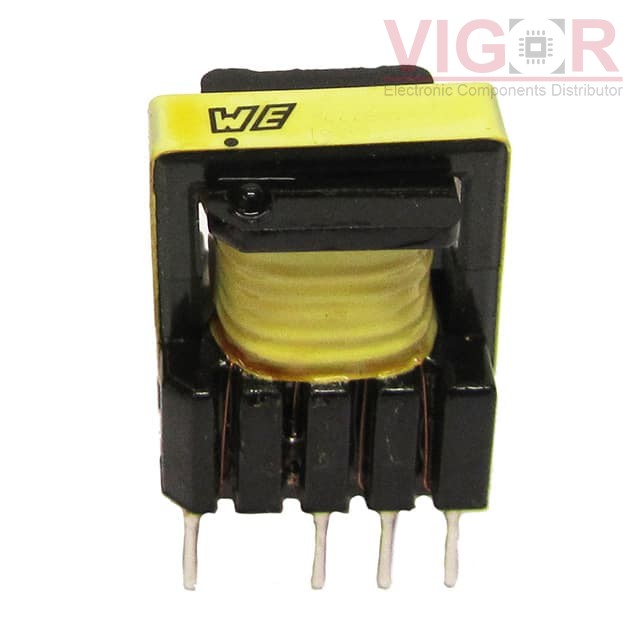

Image is for reference,
please contact us to get the real picture

Part No :

750316878

Manufacturer
Würth Elektronik Midcom
Description
OFFLINE TRANSFORMER EE16/7/5 THT
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
750316878 PDF
Availability
54 pieces
Unit Price
$5.27000

Current price of 750316878 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750316878 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:STMicroelectronics
Voltage - Primary:120 ~ 375VDC
Voltage - Auxiliary:15V @ 10mA
Voltage - Isolation:-
Inductance @ Frequency:2.2mH @ 100kHz
Frequency:80kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.545" L x 0.701" W (13.84mm x 17.81mm)
Height - Seated (Max):0.888" (22.55mm)
Footprint:0.555" L x 0.456" W (14.10mm x 11.58mm)
Style:Wirewound
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82802A0030A320

B82802A0030A320

TRANSFORMER FLYBACK 36-60V SMD

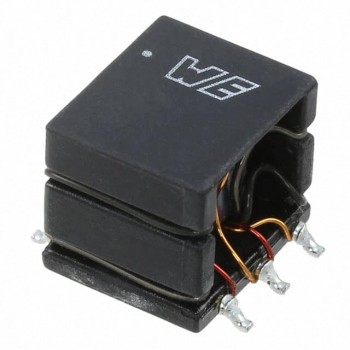

HOT 750315240

750315240

XFRMR FWD P-P DC/DC CONV SMD

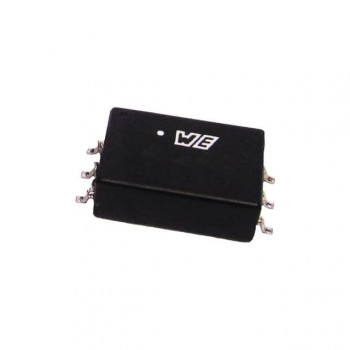

HOT 750316019
