PA3856.001NL

PA3856.001NL

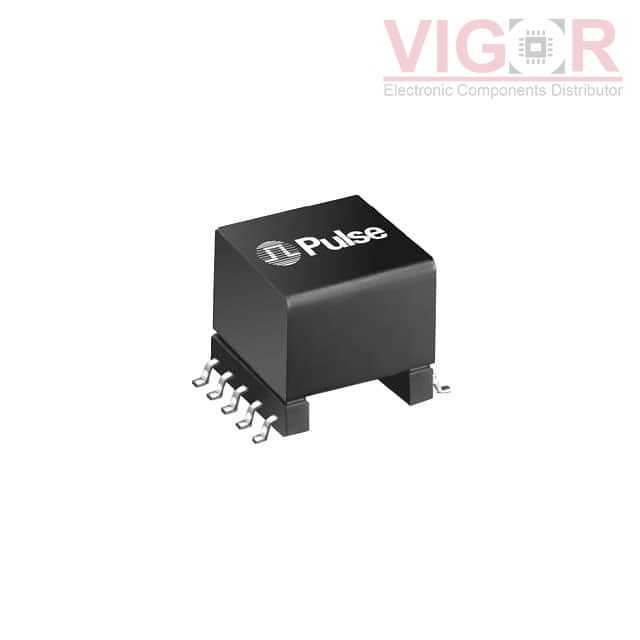

Image is for reference,
please contact us to get the real picture

Part No :

PA3856.001NL

Manufacturer
PulseLarsen Antenna
Description
XFMR,FORWARD,EEP13,SMT NPB
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
PA3856.001NL PDF
Availability
0 pieces
Unit Price
$3.42000

Current price of PA3856.001NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA3856.001NL Specifications
Type Description
Series:EP13Plus
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:33 ~ 57V
Voltage - Auxiliary:10V @ 50mA
Voltage - Isolation:2250VDC
Inductance @ Frequency:-
Frequency:200kHz
Operating Temperature:-40°C ~ 130°C
Mounting Type:Surface Mount
Size / Dimension:0.571" L x 0.526" W (14.50mm x 13.36mm)
Height - Seated (Max):0.551" (14.00mm)
Footprint:0.571" L x 0.695" W (14.50mm x 17.65mm)
Style:-
