750341143

750341143

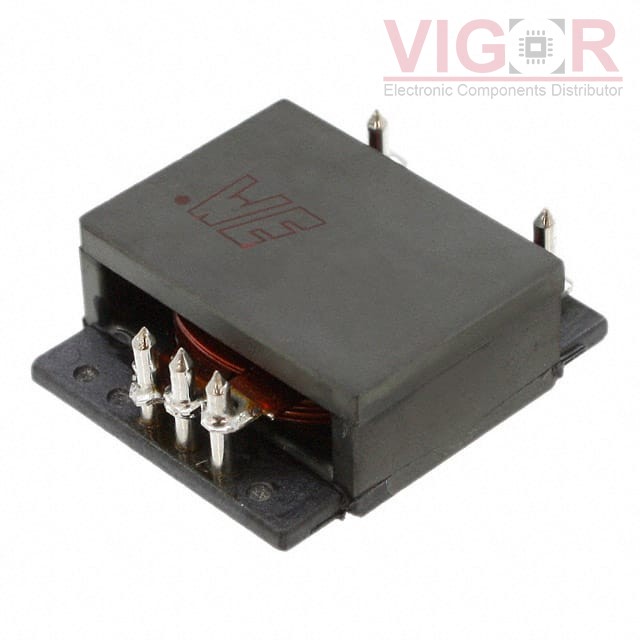

Image is for reference,
please contact us to get the real picture

Part No :

750341143

Manufacturer
Würth Elektronik Midcom
Description
TRANSFORMER PLANAR 170UH SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
750341143 PDF
Availability
0 pieces
Unit Price
$15.65104

Current price of 750341143 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750341143 Specifications
Type Description
Series:WE-FW, MID-PLN
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:500VDC
Inductance @ Frequency:170µH @ 100kHz
Frequency:200 ~ 700kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:1.050" L x 1.154" W (26.67mm x 29.30mm)
Height - Seated (Max):0.418" (10.62mm)
Footprint:1.050" L x 1.154" W (26.67mm x 29.30mm)
Style:Planar
