1140-0-01-80-00-00-03-0

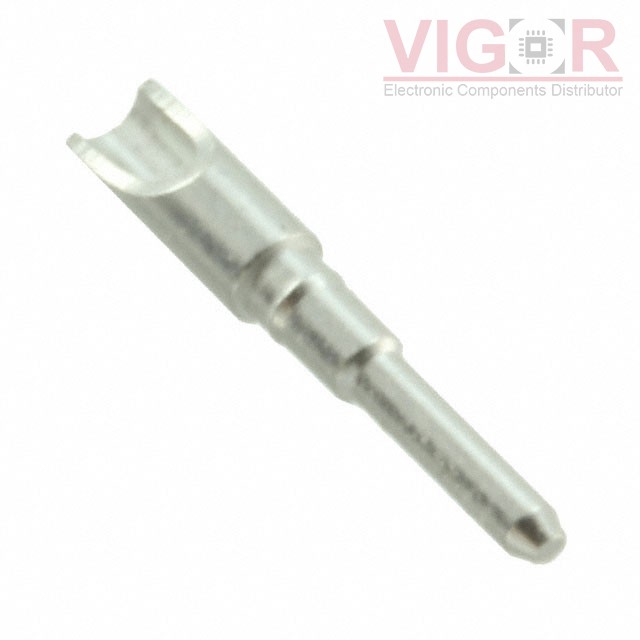

Image is for reference,
please contact us to get the real picture

Part No :

1140-0-01-80-00-00-03-0

Manufacturer
Mill-Max
Description
CONN PC PIN CIRC .040DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
1140-0-01-80-00-00-03-0 PDF
Availability
6205 pieces
Unit Price
$0.20000

Current price of 1140-0-01-80-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:1140
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Wire
Pin Size - Above Flange:0.040" (1.02mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.274" (6.96mm)
Length - Below Flange:-
Length - Overall:0.452" (11.48mm)
Flange Diameter:0.072" (1.83mm)
Mounting Hole Diameter:0.057" (1.45mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
