SA110DP

SA110DP

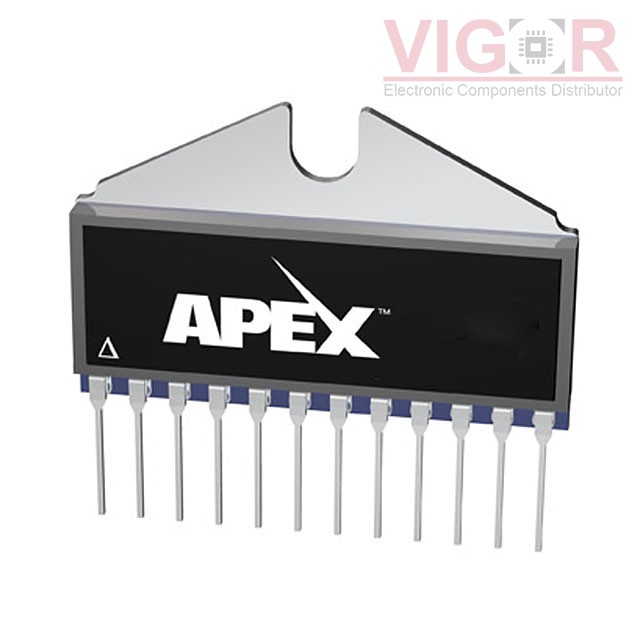

Image is for reference,
please contact us to get the real picture

Part No :

SA110DP

Manufacturer
Apex Microtechnology
Description
SWITCHING MODULE 400V 20A HALF H
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SA110DP PDF
Availability
3440 pieces
Unit Price
$0.00000

Current price of SA110DP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SA110DP Specifications
Type Description
Series:-
Package:Tube
Part Status:Discontinued at Digi-Key
Output Configuration:Half Bridge
Applications:AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface:Logic, PWM
Load Type:Inductive
Technology:MOSFET (Metal Oxide)
Rds On (Typ):30mOhm LS, 73mOhm HS
Current - Output / Channel:20A
Current - Peak Output:40A
Voltage - Supply:12V ~ 20V
Voltage - Load:12V ~ 20V
Operating Temperature:-40°C ~ 125°C (TC)
Features:Bootstrap Circuit
Fault Protection:UVLO
Mounting Type:Through Hole
Package / Case:12-PowerSIP
Supplier Device Package:12-POWER SIP
