750316152

750316152

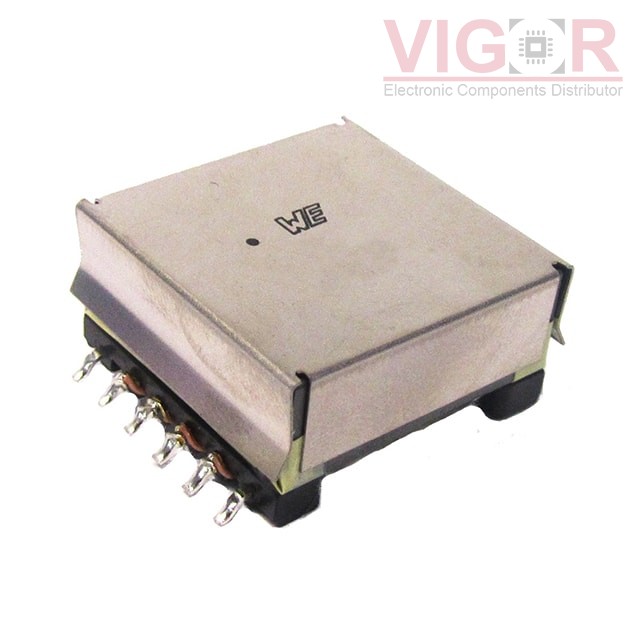

Image is for reference,
please contact us to get the real picture

Part No :

750316152

Manufacturer
Würth Elektronik Midcom
Description
XFRMR FLYBACK DC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
750316152 PDF
Availability
14 pieces
Unit Price
$6.72000

Current price of 750316152 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750316152 Specifications
Type Description
Series:WE-FB, MID-FLYLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LM3481
Chipset Manufacturer:Texas Instruments
Voltage - Primary:5 ~ 32V
Voltage - Auxiliary:-
Voltage - Isolation:-
Inductance @ Frequency:12µH @ 10kHz
Frequency:130kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.555" (14.10mm)
Footprint:1.064" L x 1.278" W (27.03mm x 32.46mm)
Style:-
