IXBF50N360

IXBF50N360

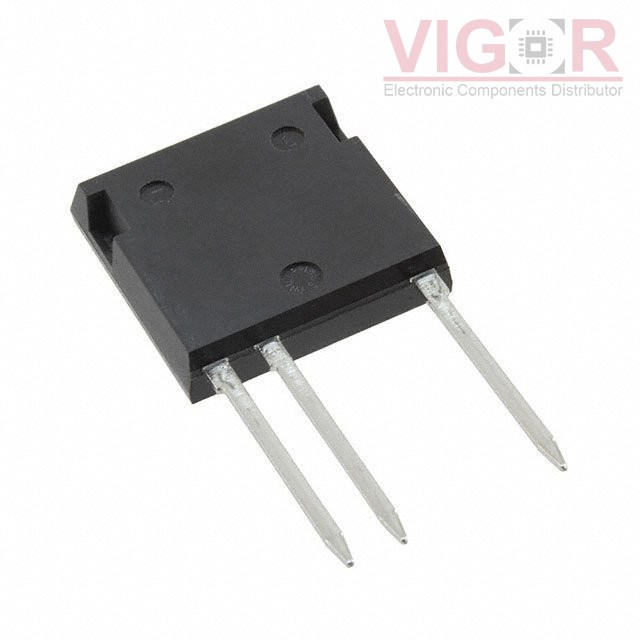

Image is for reference,
please contact us to get the real picture

Part No :

IXBF50N360

Manufacturer
Wickmann / Littelfuse
Description
IGBT 3600V 70A 290W I4-PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
IXBF50N360 PDF
Availability
0 pieces
Unit Price
$100.37640

Current price of IXBF50N360 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBF50N360 Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Not For New Designs
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):3600 V
Current - Collector (Ic) (Max):70 A
Current - Collector Pulsed (Icm):420 A
Vce(on) (Max) @ Vge, Ic:2.9V @ 15V, 50A
Power - Max:290 W
Switching Energy:-
Input Type:Standard
Gate Charge:210 nC
Td (on/off) @ 25°C:46ns/205ns
Test Condition:960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):1.7 µs
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:i4-Pac™-5 (3 Leads)
Supplier Device Package:ISOPLUS i4-PAC™
